Truck Tail Lift

Truck Tail Lift

100000-500000 INR/Piece

Product Details:

  • Condition New
  • Lifting Capacity 1500 Kilograms (kg)
  • Max. Lifting Load 2000 Kilograms (kg)
  • Max. Lifting Height 5 Foot (ft)
  • Power Source Battery Operated
  • Power Consumption 12 Volt (V)
  • Voltage 12 Watt (w)
  • Supply Ability : 10 Piece Per Day
  • Click to view more
X

Price And Quantity

  • 100000-500000 INR/Piece
  • 100000.00 - 500000.00 INR/Piece
  • 1 Piece

Product Specifications

  • New
  • 1500 Kilograms (kg)
  • 12 Watt (w)
  • 2000 Kilograms (kg)
  • Battery Operated
  • 12 Volt (V)
  • 5 Foot (ft)

Trade Information

  • 10 Piece Per Day
  • 7 Days

Product Description

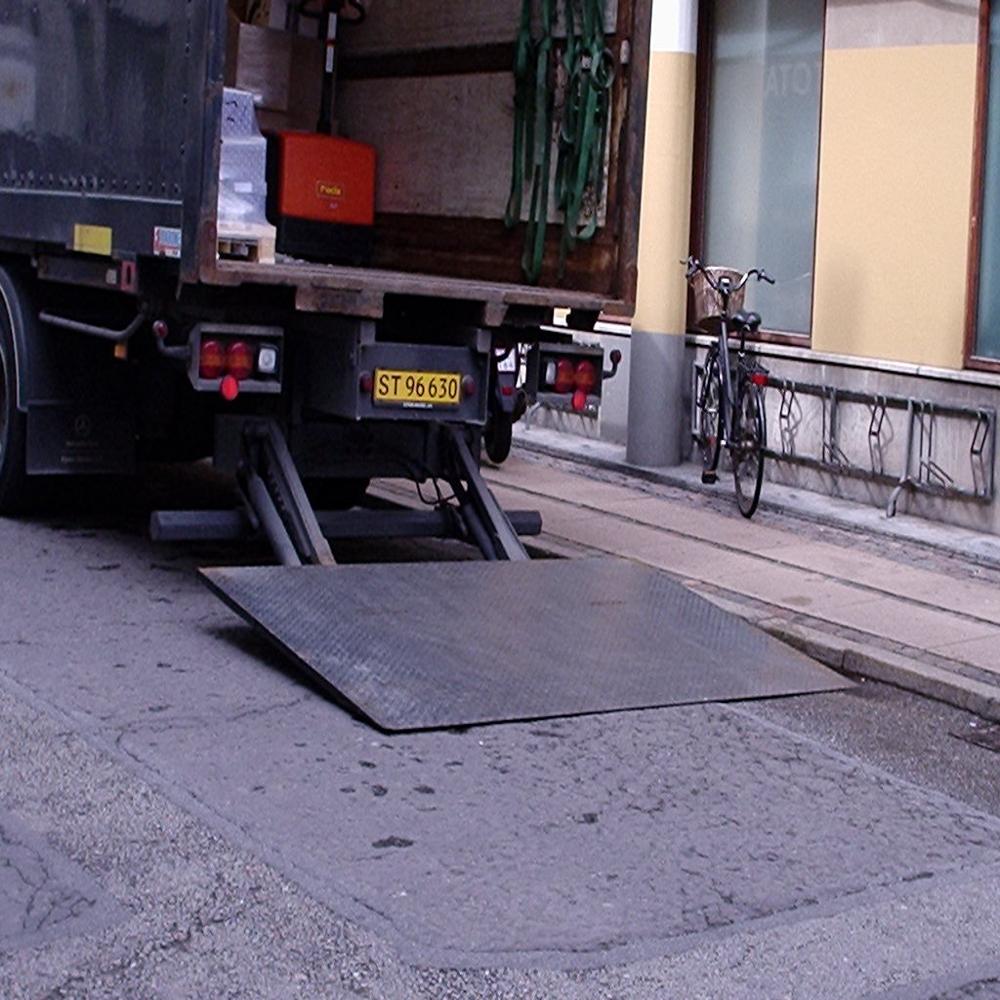

Truck Tail Lift offered by our company to our customers, is manufactured using superior quality raw materials by our skilled workers. This lift acts as a mechanical device permanently installed on the rear of a work truck, van, or lorry. This lift is basically designed to facilitate the materials handling of goods from ground level or a loading dock to the level of the vehicle bed, or vice versa. Truck Tail Lift makes it much easier to safely load and unload trucks. This lift is very synonymous with cost efficiency, flexibility and a high level of operating comfort. This lift is with DC power pack, which derives power from the vehicle battery. This lift is very cost effective along with fast installation and simple operations.

Technical specification

Model

TI-QB10/105

TI-QB15/120

TI-QB15/155

TI-QB20/160

Remarks

TI-QB15/105

TI-QB20/120

TI-QB20/155

TI-QB25/160

Platform size (mm)

1700×1600

1800×1700

2100×1800

2200×1800

It can be made according to the customer's damands.

1800×1700

1900×1700

2200×1800

2300×1800

1900×1700

2000×1800

2300×1800

2400×1800



2000×1800

2100×1800

2400×1800

2500×1800

Max.load (kg)

1000/1500

1500/2000

1500/2000

2000/2500



Self weight (kg)

400-450

450-520

550-600

600-650



Motor power(kw)

1.6/2.2

1.6/ 2.2

2.2 / 3

3



System working pressure

10MPa-14MPa



Motor

DC12V-24V/100AH-160AH


Frame arm length (mm)

600/700/750

800

900

1000


Frame lnner width (mm)

900

900

1010

1010


Using height from the vehicle box to ground (mm)

1000

1200

1500

1600


Average lifting speed (mm/sec)

60-80

Speed can be controlled

Opening or closing speed (mm/sec)

10


Hydraulic oil

68#anti-weav hydraulic oil


Platform working angle

5°-9°





TECHVOS INDIA
